Control Scope Integrated into Digital Power Controller

Friday, July 8th, 2016

How can I look at my digital signals in my power controller?

One of the big issues when working on digital control of power electronics is being able to look at the digital signals inside your controller.  In order to see what is going on inside the control the digital signals need to be brought out so you can look at them.

When a DAC isn’t good enough.

One way to do this is with a digital to analog converter (DAC) where the digital stream is sent out as an analogue signal.  These DAC channels are really useful and should be on every digital power electronics controller.  However processing power usually limits the logging or data streaming to a DAC to a low number of channels.  Each channel requires a scope channel of its own to do measurement.  Any measurement is limited in length to the scope’s memory and the scopes sample rate.

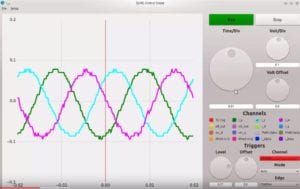

scope-capture

ELMG Digital Power ControlScope

Data Collection in the Controller and Detecting Events

There is also the issue that collecting enough data to allow event detection such as;

  • single sample errors
  • clipping
  • overflow
  • underflow or precision loss and
  • bursty instability due to precision loss

can be a very difficult large load on the control processor and memory if the data logging rate is very high or if the rate of the problem is very low.

Control Scope Integrated into Digital Power Controller

To solve this problem we put the data collection and logging into the controller but without loading the controller.

Using the Xlinx Zynq system on a chip (SoC) we use the flexibility of running Linux on one of the two ARM 9 cores to provide the high speed gigabit Ethernet connectivity.

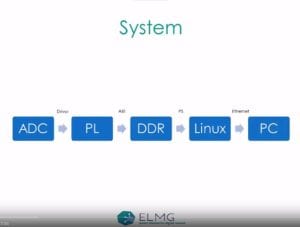

Dlog Implementation

Dlog Implementation

We also use the Linux for secure remote access if required.

Using ELMG Power Core IP blocks and know how we create firmware in the FPGA fabric of the Zynq.  This connects to the Linux kernel and then the Linux user space.  Data can be logged at full sample rates into SD cards or MMX memory and simultaneously out via the Gigabit Ethernet to the internet.

To be very clear no Linux code is included in the power electronics control function which is all implemented in the FPGA fabric on the Zynq.

Put a scope on the other end of the Ethernet

The video shows the ELMG ControlScope application connected to the ELMG Digital Power Zynq data collection system (named Dlog).

This system implements a fully functional oscilloscope that allows the internal operation of the digital control to be shown and logged.

With gigabit Ethernet logging rates of 25 M bytes per second are possible using Dlog.

This means that logging of your power converter performance and waveforms, scope function or debugging can be done over the internet.

To evaluate the Dlog and the ControlScope than click below.


Request Dlog and ControlScope Information



Fixed Point Numerical Systems for Digital Control

Saturday, August 29th, 2015

One question which is commonly asked is “how do I represent fractional numbers on my fixed-point MCU, DSP or FPGA?” One of the best solutions to this is use of the Q number system.

The Q number system is a fixed point system where the available bits are divided amongst the integer bits (those to the left of the decimal point), fractional bits (those to the right of the decimal point) and a sign bit. You may ask “I know how integers are represented in binary but not fractions?” The answer is that just like integers, fractional bits are just multiplied by powers of two, except the powers are negative. For example:

  • 0.011B = 0*2-1+1*2-2+1*2-3 = 0.375

Q numbers can take on multiple forms with different numbers of fractional and integer bits. They are commonly written mQn or Qm.n where m is the number of integer bits and n is the number of fractional bits. Note m+n+1 = total number of bits available.

Arithmetic

Addition/Subtraction:

Q numbers of the same form can be added together with no issue. The only thing to consider here is overflow.

If you have different forms they need to be converted before the arithmetic. This can be done by shifting. For example:

  • 2Q13 << 1 is now 1Q14 (lose an integer bit and gain a fractional bit) and
  • 3Q12 >> 1 is now 4Q11 (lose an fractional bit and gain an integer bit)

Multiplication:

  • The rule when multiplying two Q numbers together is:
  • m1Qn1 * m2Qn2 = (m1+m2)Q(n1+n2)

Once the multiplication is complete, then a shift is needed to get it into the Q format the system needs.

The big issue with multiplication is overflow and precision loss. When there exists m > 0, then scaling back to your original system is difficult. For example:

  • 2Q13 * 2Q13 = 4Q26

In order to scale this back to the original 16 bits you either have to sacrifice integer bits (you have to be very careful that the top integer bits don’t contain information – limit the overflow) or lose precision by discarding fractional bits. The solution to this is to try and use systems where m=0.

Digital Control

Choosing the Q number system for digital control is important. The general rule of thumb is you want as much precision as possible and you want to avoid overflows in multiplication. Therefore the best solution is to make all your bits fractional (i.e. m=0). This gives as much precision as your system allows and makes sure there are no overflows (<1 x <1 = <1). In a 16-bit system this is 0Q15 (referred to as Q15).

Once you have your system then you need to make sure that all inputs and outputs fit this system and falls within the range -1 <= x < 1. This is as simple as setting your inputs and outputs to be +1 = full scale positive and -1 = full scale negative.

The key for this to work in a digital control system is to remember the gains on the inputs and outputs. This means remembering what +1 and -1 stand for. For example a voltage input may be -230V to +230V and an output maybe -400V to 400V. The input gain is therefore 1/230 and the output gain 400. Once you have these gains you need to include them in your design of the control system, whether it be through calculation or simulation. Failing to include them leads to incorrect margins and possibly instability.

One potential pitfall of the m=0 approach is how to deal with numbers greater than one. In digital control these can come up quite often generally in biquad filters. The trick is to this is to scale the coefficients by ½, perform the multiplies and then scale back by 2 (shift left 1). This does lose one bit of precision in this particular calculation however it is better than losing one fractional bit in all calculations.

Conclusion

Q number systems allow the designer to use a reliable fixed point system to represent fractional numbers. This allows the use of less expensive fixed point processors instead of the more complex and generally more expensive floating point alternatives.
